Advantage

Cost-effective configuration

Cost-effective configuration, low-cost operation, streamlined design, stable performance, simple and convenient operation

Fresh air protection system

Lejia fresh air system efficient operation, field mirror air shower shielding protection to ensure high quality and precision forming

Software data is open source

Open source software data, can print a variety of materials, widely used

Fully pop-up piston

Equipped with fully pop-up piston platform, convenient and fast replacement of all kinds of metal powder, 100% prevent the occurrence of cross-contamination when replacing the powder

Parameter

• Device name/model


  laser


  Scanning system


  Scanning speed


  Molding cavity size


  The thickness of the layered


  Feeding way


  Molding material


  The operating system


  The control software


  The data format


  Power supply and power consumption


  External dimensions of equipment


  The environment temperature

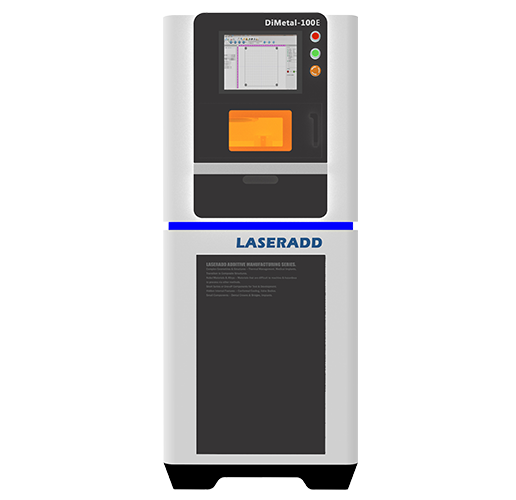

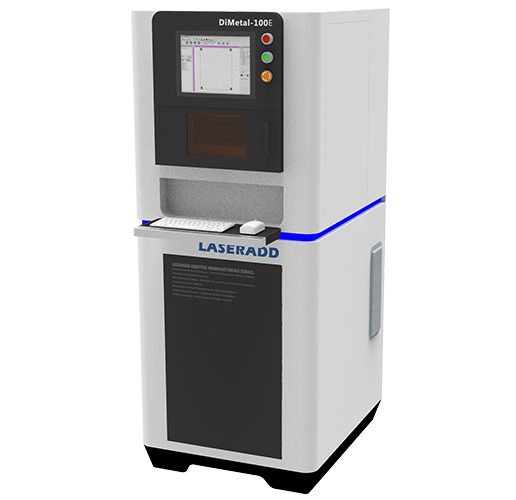

• DiMetal-100E


  Infrared Ytterbium doped fiber laser, 200W (other power lasers are supported)


  High precision scanning galvanometer


  Top 7.8 m/s


  100mm*100mm*100mm


  0.02 mm to 0.2 mm


  One way for powder


  Stainless steel, cobalt chromium alloy, titanium alloy, die steel and other metal powder


  Windows 7 64 bits


  Independent development of control and path planning software system


  STL file or other convertible format


  220 v 50 Hz 3Kw


  730mm (L) *920mm (W) *1770 (H)


  Operating temperature 15-30¡æ

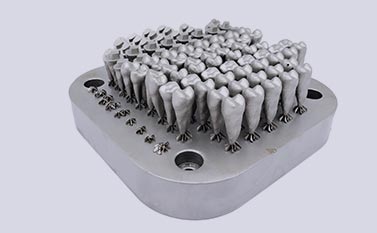

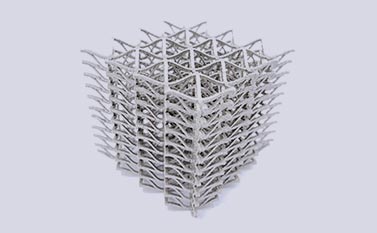

Case

D4

D3

D2

D1

Recommend equipment

DiMetal-650

Scanning speed up to 34m/s
Molding cavity size 625mm*625mm*1100mm
Layer thickness 0.02mm to 0.2mm

Application: aerospace, mold industry, automobile industry and other large size parts are widely used in the industry.

Learn More

DiMetal-50

Scanning speed: maximum 7m/s
Cavity size: 50mm*50mm*50mm
Layer thickness: 0.02mm-0.1mm

Application: jewelry, dentistry, scientific research and education industries

Learn More

DiMetal-50E

Molding size ¦Õ70x50
Dimensions 720mm*810mm*1500mm

Metal 3D printer for vocational education and training

Learn More

DiMetal-100D

Maximum scanning speed of 7m/s
Molding cavity size 100mm*100mm*100mm
Layer thickness 0.02mm to 0.1mm

Application: Orthopedics, dentistry, jewelry and scientific research and education

Learn More

DiMetal-100H

Maximum scanning speed of 7.8m/s
Molding cavity size 100mm*100mm*100mm
Layer thickness 0.02mm to 0.2mm

Application: Dentistry, orthopedics, jewelry, scientific research and education

Learn More

DiMetal-150

Maximum scanning speed of 7.8m/s
Forming cavity size 150mm*150mm*150mm
Layer thickness 0.02mm to 0.2mm

Application: Dentistry, orthopedics, mold, jewelry, scientific research and education

Learn More
